High Efficiency Hybrid Solar Power Inverter 6Kw Single Phase Energy Storage Hybrid Battery Inverters
Payment :
T/T,L/C, Western UnionShipping Port :
ShanghaiParallel :
9 UnitsMonitoring :
WifiMax Power :
6000WOutput Voltage :
220V,230VWarranty :
5 YearsCertificate :
CECommunication :
BMS (RS485)Protection :
IP65Order MOQ :
1Type :
Hybrid AC/DC InverterItem No. :

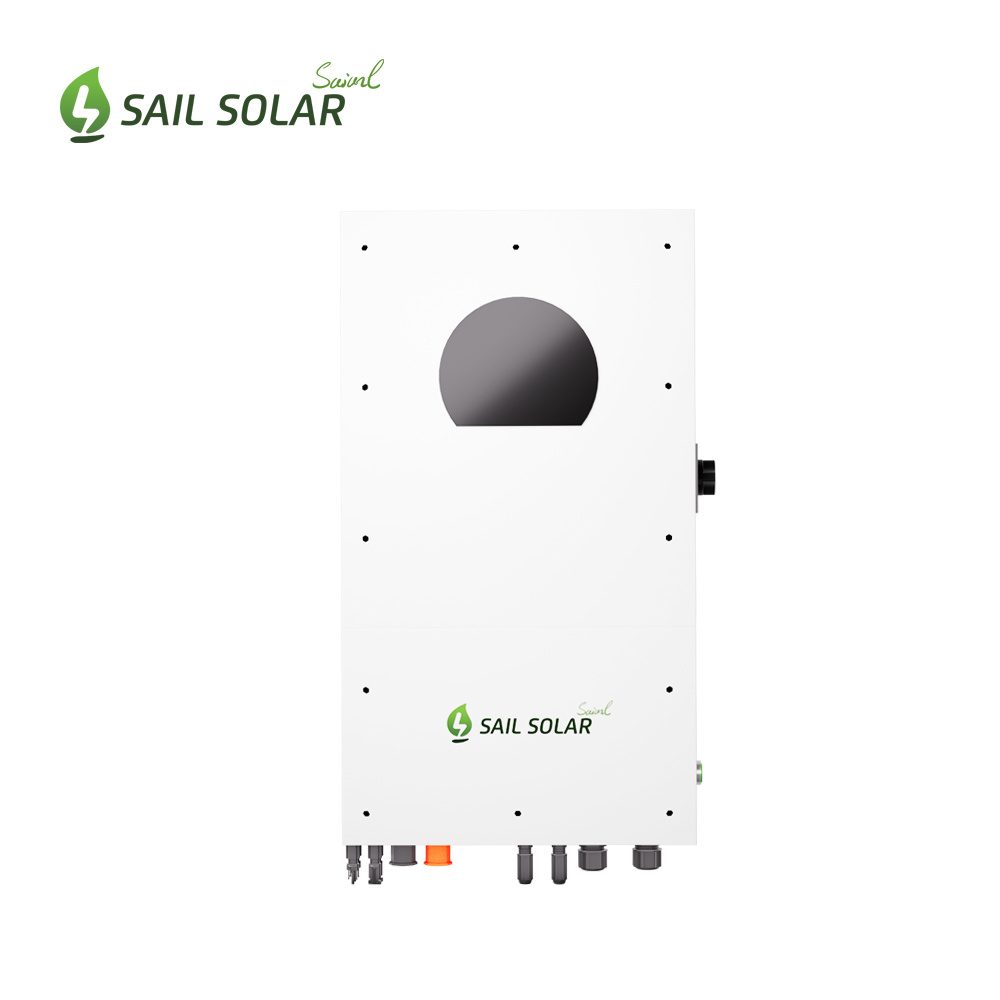

Helios-6KLP1-EUHelios-6KLP1-EU hybrid inverter supports parallel operation of up to 9 units, features dual outputs for smart load control, automatically connects and switches between two independent AC power sources, enables self-consumption and grid feed-in, allows programmable supply priority among photovoltaic (PV), battery, or grid, and incorporates built-in 2 Maximum Power Point Trackers (MPPT).
|
MODEL |
Helios-6KLP1-EU
|
|
Maximum Pv Input Power |
9000 W
|
|
Rated Output Power
|
6000 W
|
|
Maximum Charging Power
|
6000 W
|
|
PV INPUT (DC)
|
|
|
Maximum DC Voltage
|
500 VDC
|
|
Start-up Voltage / Initial Feeding Voltage
|
80 VDC / 150 VDC
|
|
MPP Voltage Range
|
120 VDC ~ 400 VDC
|
|
Number of MPP Trackers / Maximum Input Current
|
2 / 18A
|
|
GRID OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
220/230/240 VAC
|
|
Output Voltage Range
|
184 - 264.5 VAC or 195.5 - 253 VAC or 184 - 264.4 VAC (Selectable)
|
|
Nominal Output Current
|
26A
|
|
AC INPUT
|
|
|
AC Start-up Voltage / Auto Restart Voltage
|
60 - 80 VAC / 180 VAC
|
|
Acceptable Input Voltage Range
|
90 - 280 VAC or 170 - 280 VAC
|
|
Maximum AC Input Current
|
40 A
|
|
BATTERY MODE OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
220/230/240 VAC
|
|
Efficiency (DC to AC)
|
93%
|
|
BATTERY & CHARGER
|
|
|
Nominal DC Voltage
|
48 VDC
|
|
Maximum Solar Charging Current
|
120 A
|
|
Maximum AC Charging Current
|
120 A
|
|
Maximum Charging Current
|
120 A
|
|
PHYSICAL
|
|
|
Size, D x W x H (mm)
|
192 x 385 x 665
|
|
Net Weight (kgs)
|
28
|
|
INTERFACE
|
|
|
Parallel Function
|
Yes, 9 units
|
|
Communication Port
|
USB or RS-232/Dry Contact/RS485/Wi-Fi
|
|
ENVIRONMENT
|
|
|
Humidity
|
0 ~ 100% RH (Non-condensing)
|
|
Operating Temperature
|
-10°C to 50°C
|
|
PROTECTION & CERTIFICA
TE
|
|
|
Safety
|
IEC 62109, IEC 62116, IEC 61727, IEC 61683
|
|
Protection Grade
|
IP65
|
|
Grid Connection Standard
|
NRS097-2-1:2017, VDE-AR-N4105, G99, TOR Erzeuger Typ A
|
|

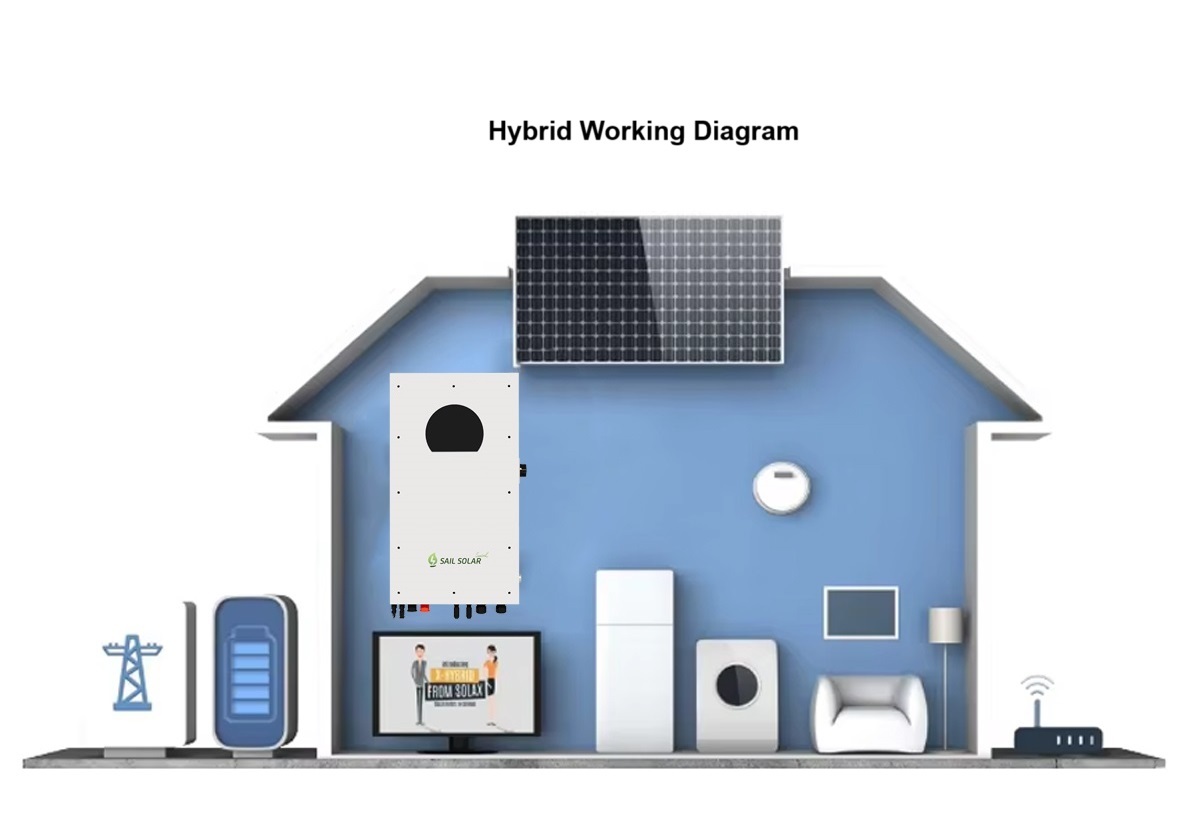

Helios-6KLP1-EU hybrid inverter is built-in 2 MPP trackers, features IP65 rated enclosure. IP65 water and dust resistance provide excellent protection under diverse climates. Hybrid inverter is able to install in areas that are likely to suffer from sand and water penetration. User-programmable priority for PV, battery and grid, and more via software, suits your need for that point in time of day or night. It helps to manage self-consumption and reduce electricity bills.Two independent AC power sources are connected and switched automatically. The adjustable charging current setting for two different power sources via LCD operation and mobile.
|
|

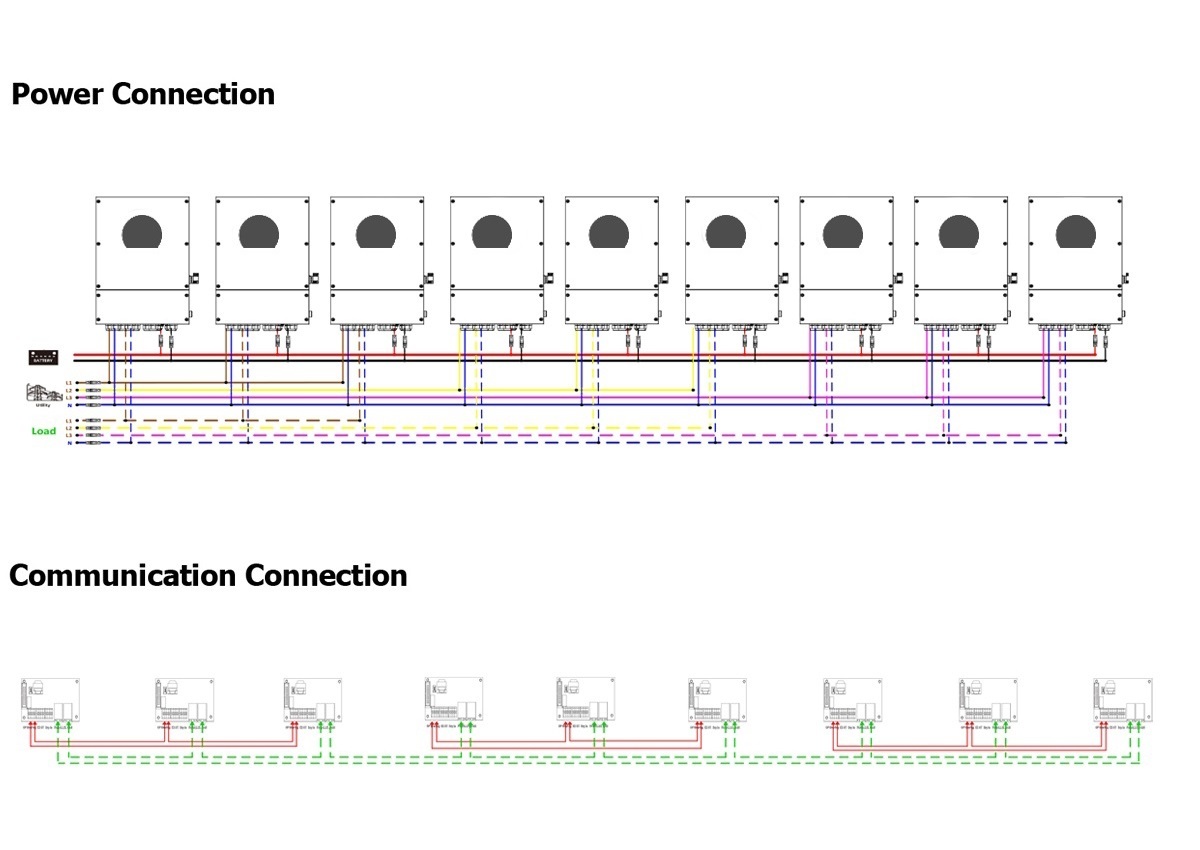

Helios series single phase 6Kw hybrid solar inverter can support max 9pcs in Parallel, you can connect the machine to single phase or three phase according to your needs.
Feature:
High Reliability: Ensure continuous operation with redundant systems.
Scalability: Easily expand your system as needed.
Optimized Efficiency: Maximize energy conversion and reduce wastage.
Cost Effective: Save on long-term maintenance and energy bills.
User-Friendly: Simple installation and hassle-free management.
Eco-Friendly: Promote sustainability and reduce your carbon footprint.
|
|
