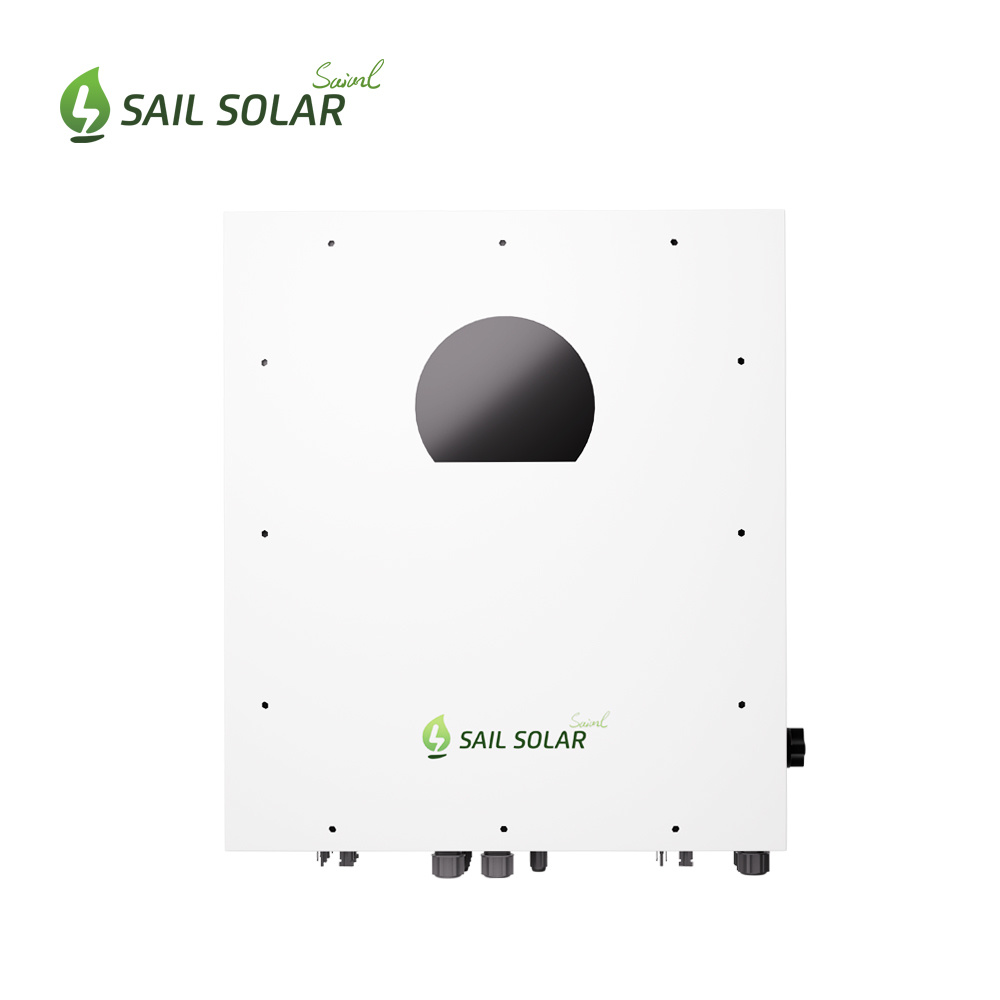

Sail Solar 30kw High Voltage 3 Phase MPPT Hybrid 30kw Solar Inverter for Industrial

With ingress protection to IP65, 30kW is suitable for use both in outdoor applications and indoor environments where atmospheric moisture and dust are present, 30kW also offers a dual Ac input power source compatible with generator power to guarantee uninterruptible power. lt allows parallel operation up to 4 units for power expansion.

Specification

MODEL	Helios-30KLP3-EU
Maximum Pv Input Power	40000 W
Rated Output Power	30000 W
Maximum Charging Power	30000 W
PV INPUT (DC)
Maximum DC Voltage	720 VDC/ 1000 VDC
Start-up Voltage / Initial Feeding Voltage	320 VDC / 350 VDC
MPP Voltage Range	350 VDC ~ 900 VDC
Number of MPP Trackers / Maximum Input Current	3 / A:26A, B:26A, C:32A, D:26A
Number of Strings Per MPP Tracker	A:2, B:2, C:2
GRID OUTPUT (AC)
Nominal Output Voltage	230VAC(P-N)/400VAC(P-P)
Output Voltage Range	184 - 265 VAC per phase
Nominal Output Current	43.5 A  per phase
AC INPUT
AC Start-up Voltage / Auto Restart Voltage	120 - 140 VAC / 180 VAC per phase
Acceptable Input Voltage Range	170 - 280 VAC per phase
Maximum AC Input Current	50 A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	230VAC(P-N)/400VAC(P-P)
Efficiency (DC to AC)	97%
BATTERY & CHARGER
Battery Voltage Range	500~900VDC
Maximum Solar Charging Current	50 A
Norminal Output Voltage	230VAC(P-N)/400VAC(P-P)
Efficiency (DC to AC)	97%
PHYSICAL
Size, D x W x H (mm)	255 x 660 x 750
Net Weight (kgs)	73
INTERFACE
Intelligent Slot	Optional SNMP and MODBUS
Communication Port	RS-232, USB, RS-485, Dry Contact, CAN, Wi-Fi, Bluetooth
ENVIRONMENT
Humidity	0 ~ 100% RH
Operating Temperature	-25°C to 60°C(>45℃ De-rating)
PROTECTION & CERTIFICA TE
Safety	IEC/EN 61000, IEC/EN 62920, EN62477
Protection Grade	IP65
Grid Connection Standard	NRS097-2-1:2017, VDE-AR-N4105, G99, IEC 61683, IEC 61727, IEC 62116

Application

The new two MPP-Tracker inverters of the SAIL Solar Helios series are ideal for commercial rooftop installations. The Helios product series achieves a higher maximum efficiency of 98.8% and features unique design highlights: solid capacitor,fuse free and optional AFCl function. These three new features ensure a longer life-span and a higher safety level of operation allowing for an improved user experience. With its weight of just 73 kg and compact design, the inverters of the Helios series are easy to handle. With a maximum DC input voltage of 1000V, wider MPPT range, and a start-up voltage of 3500V, the Helios series guarantees an earlier generationof power and a longer working time in order to maximizelong-term returns and profitability in safe operating conditions.

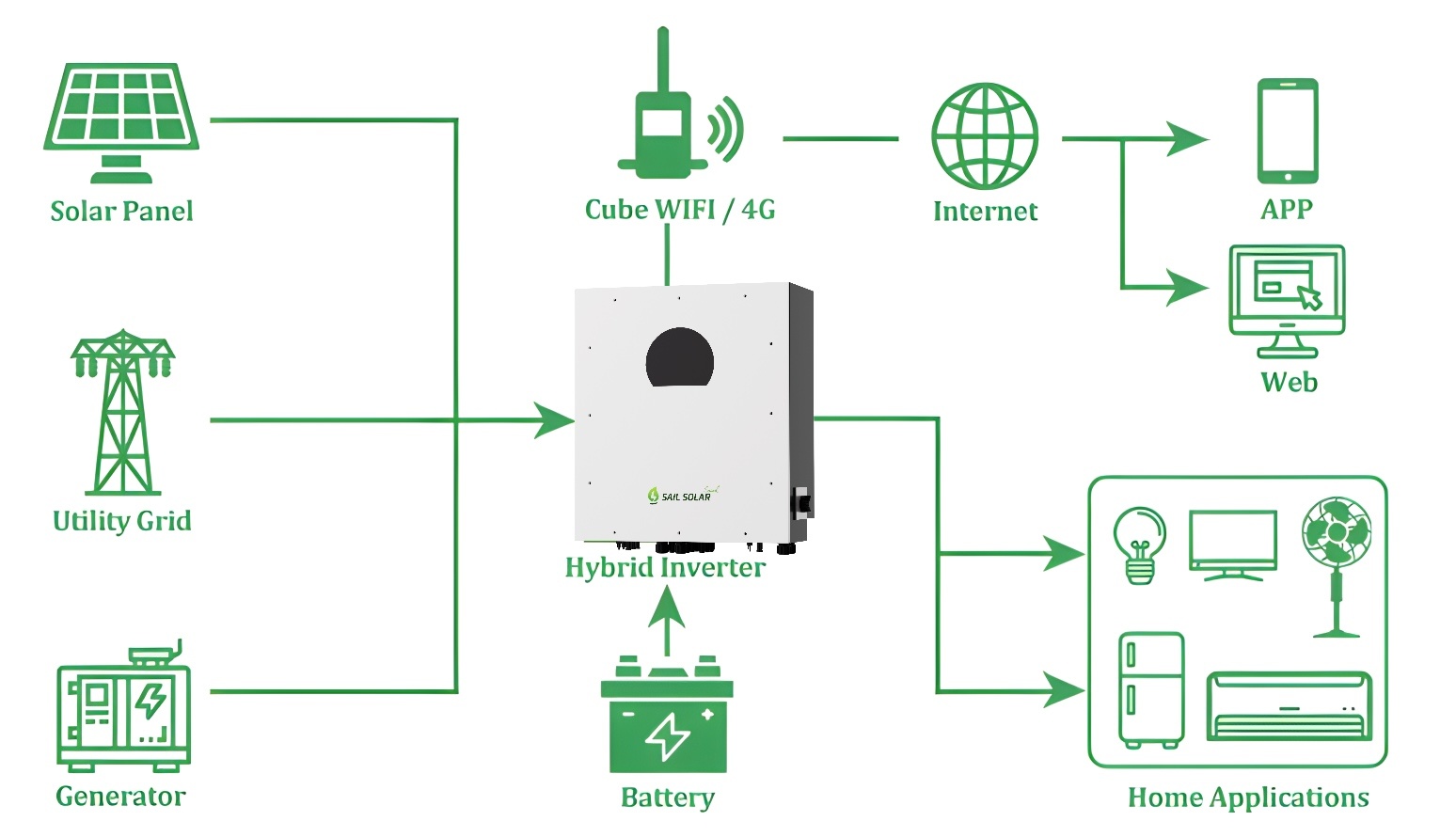

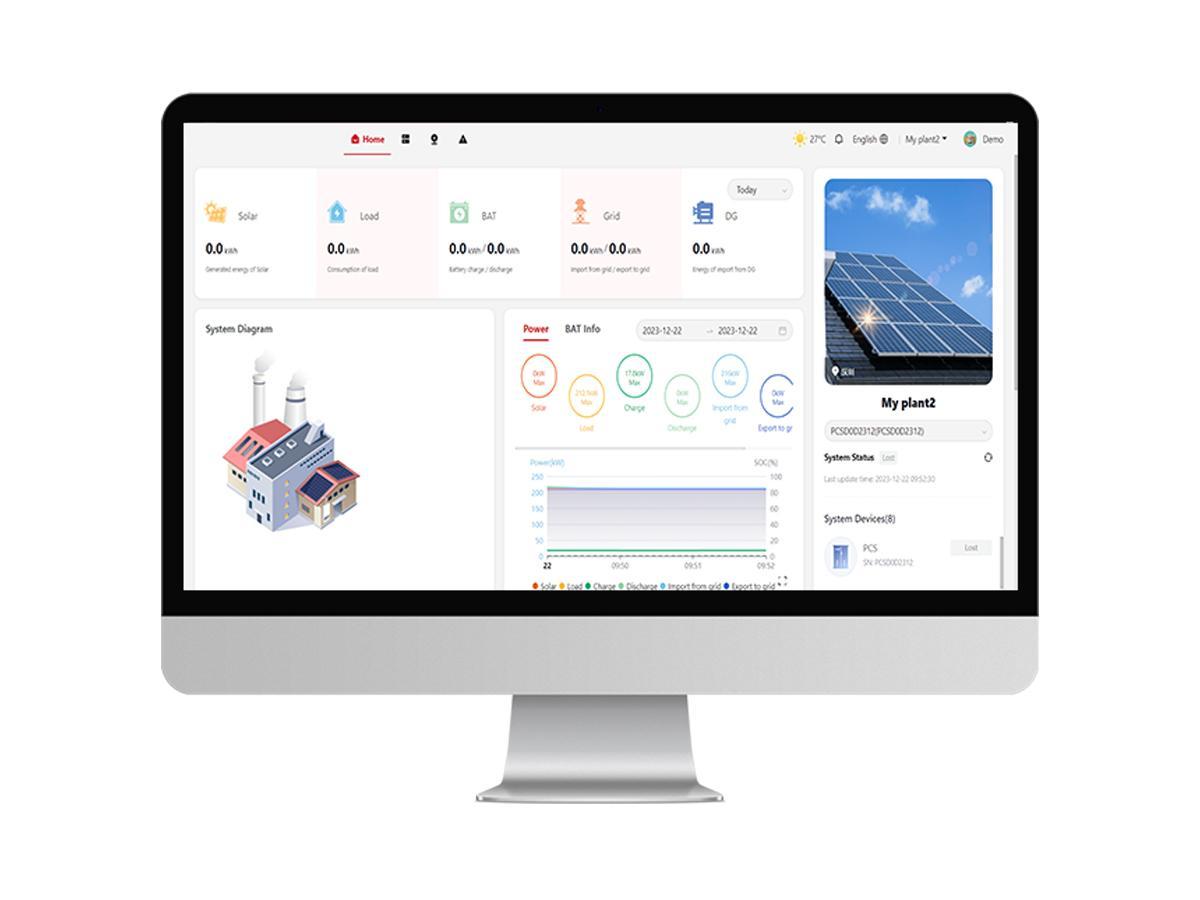

Helios 30kW Three Phase Hybrid solar Inverter is suitable for the household photovoltaic energy storage system. DC power generated by solar panels is stored in the battery through the inverter. When electricity is needed, it is first supplied by solar panels. If the light intensity cannot support the operation of solar panels, the inverter will convert the DC power of the battery into a single-phase power for home load. If the battery power is not enough, it can be quickly switched to power grid to supply power. Helios 30kW Three Phase Hybridsolar Inverter has a colored LCD and a variety of communication functions. It can be remotely operated through the mobile phone APP, which is convenient and fast. It can output pure sine wave, run stable and reliable. Replaceable fan design enables customers to maintain safety and convenience.
